The Best NP-F Batteries for Field Monitors and Small LED Lights [2026]

The Sony NP-F battery system has been one of the power standards on film and photography sets for years. We use them to power not only small camera-top LED lights or video transmission systems, but also more demanding field monitors and video recorders.

In this article, we break down the critical specs to consider when buying an NP-F battery, how modern NP-F batteries from Mathorn solve common issues inherent to legacy designs, and why they offer a safe, reliable power solution.

Why does your field monitor shut down when powered by NP-F batteries?

A field monitor often cuts out under load due to a weak Battery Management System (BMS) that cannot handle sudden current spikes, combined with inaccurate voltage readings. Mathorn NP-F batteries eliminate this issue thanks to an advanced BMS controller that accurately communicates state-of-charge data directly to the monitor’s firmware.

High-drain cinema gear—such as the Atomos Ninja—or ultra-bright field monitors exceeding 1,500 nits can draw over 15–20W under heavy loads. Power dropouts usually stem from budget third-party replacement batteries built with low-grade lithium cells and inadequate BMS protection circuits. This typically manifests in a few ways:

• Inability to handle peak load spikes: Subpar cells fail to deliver sufficient current during burst draws—such as when triggering ProRes RAW recording or pushing a high-bright display to maximum nit output. When this happens, the battery’s BMS trips its protective cutoff to prevent cell damage or overheating.
• Inaccurate state-of-charge readings: Primitive protection circuits feed inaccurate voltage telemetry back to the monitor. As a result, your monitor might indicate 30% battery life remaining, yet the voltage collapses rapidly under load, causing the device to abruptly shut down.

How do you minimize the risk of interrupted takes or corrupted video files? By choosing battery packs with intelligently engineered BMS circuitry equipped with comprehensive thermal, over-voltage, and over-current protection—like Mathorn NP-F batteries.

Rather than copying cheap third-party clone designs, Mathorn focused on an architecture engineered explicitly for dynamic, high-draw production gear. Built on a foundation of high-drain Li-ion cells from trusted tier-1 manufacturers like LG and Panasonic, each battery features a microprocessor-driven BMS. This system oversees power distribution, ensures stable current delivery, and provides accurate battery telemetry to connected devices—allowing the pack to effortlessly handle sudden surges in current draw.

What sets the individual models in the Mathorn NP-F lineup apart?

The Mathorn NP-F series varies in capacity, footprint, and weight across three distinct models: the MB-502 (NP-F550 drop-in replacement), MB-701 (NP-F770 drop-in replacement), and MB-902 (NP-F970 drop-in replacement). Every model includes built-in USB-C charging support and an advanced BMS protection suite.

Mathorn MB-502 (NP-F550 Equivalent) – Ultra-Compact & Lightweight

• Nominal Capacity: 3,500 mAh
• Energy: 25.2 Wh
• Best Uses: Thanks to its low weight and slim profile, the MB-502 is ideal for rigging lightweight photo/video accessories, including compact field monitors, wireless video transmitters, compact LED panels, and audio receivers.

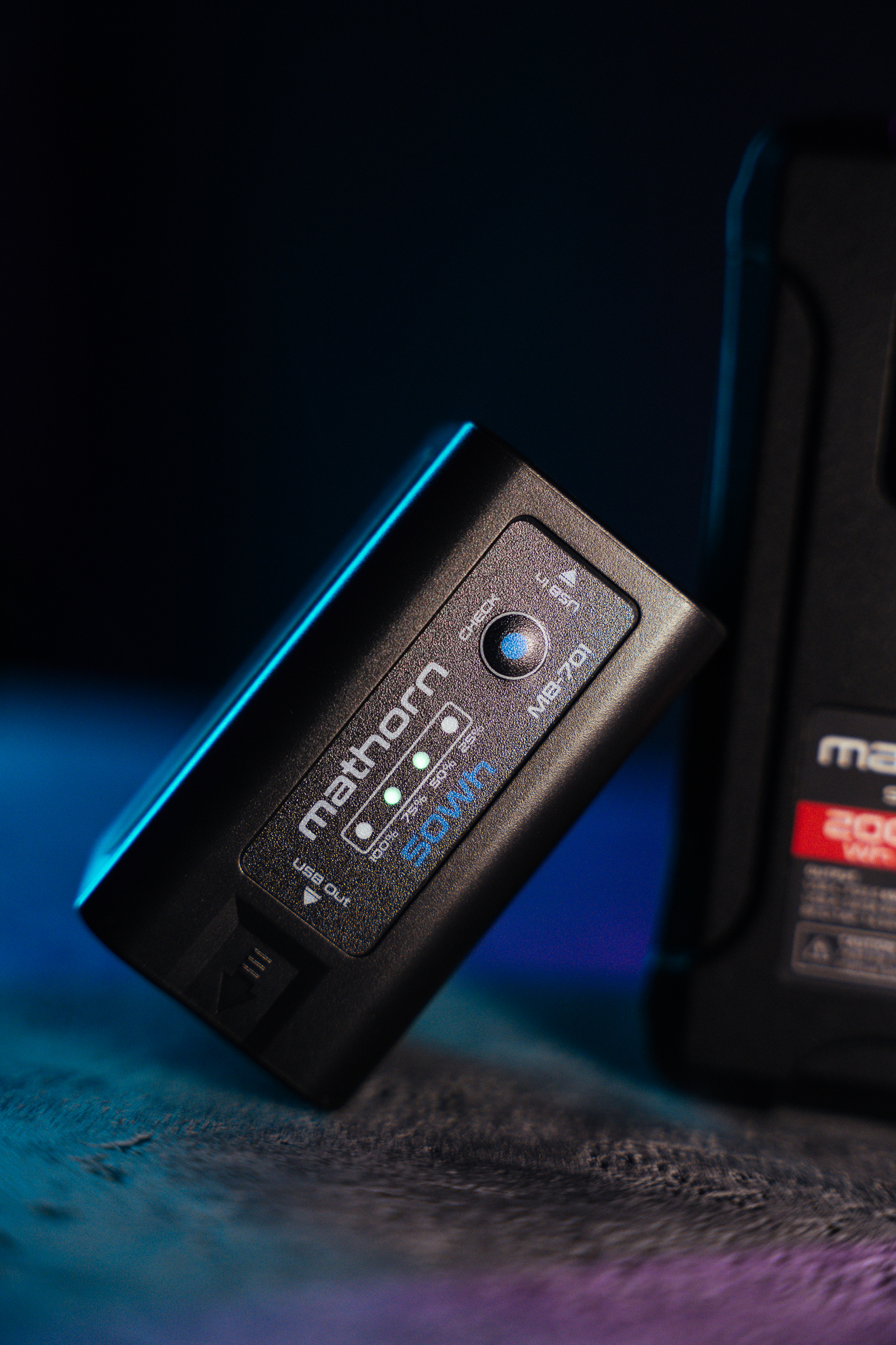

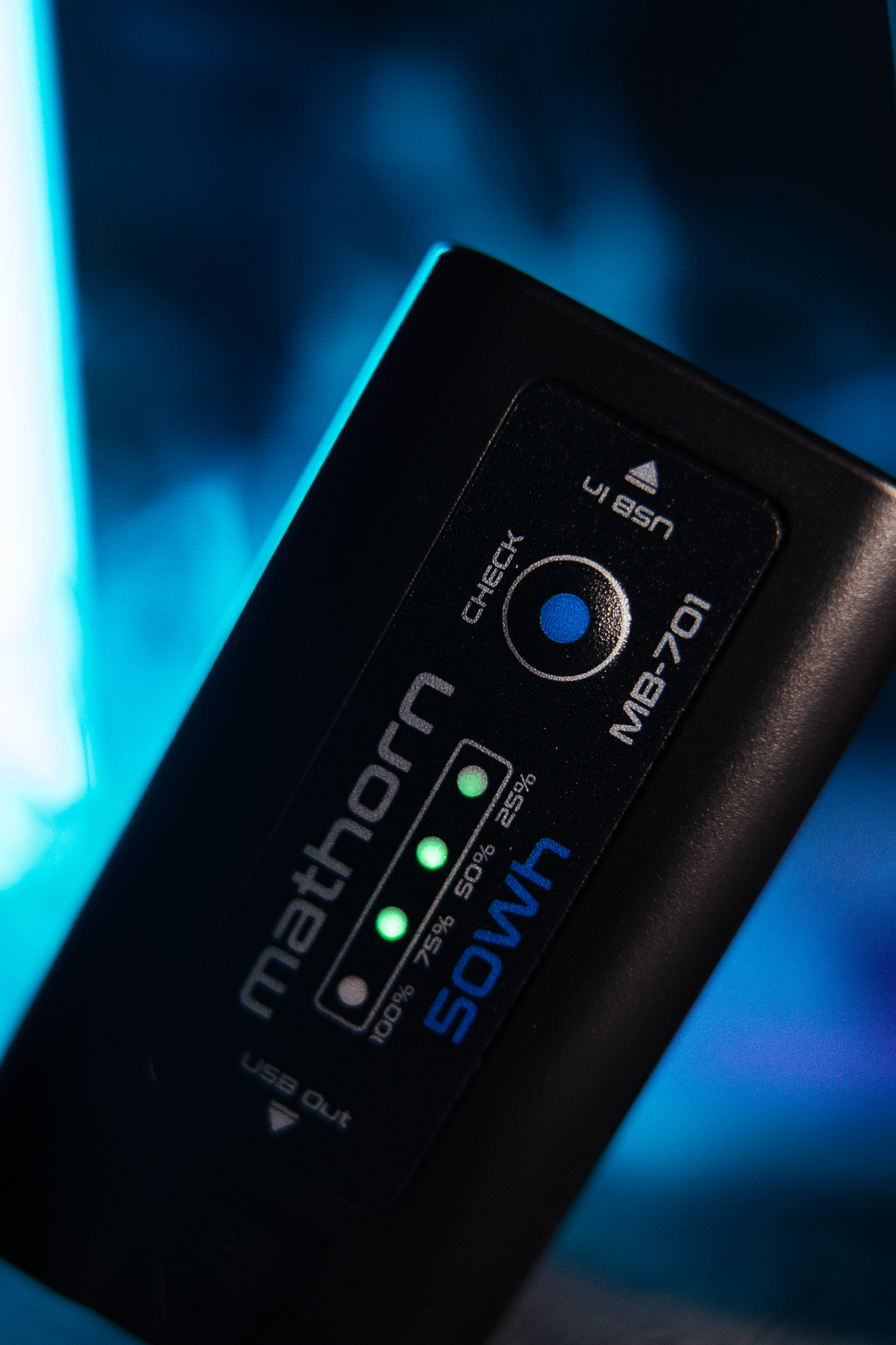

Mathorn MB-701 (NP-F770 Equivalent) – Balanced High Capacity

• Nominal Capacity: 6,700 mAh
• Energy: 50 Wh
• Best Uses: Perfect for powering camera-mounted LED lights, 5-inch or 7-inch field monitors, and portable RGB panels during longer shoots.

Mathorn MB-902 (NP-F970 Equivalent) – Maximum Performance

• Nominal Capacity: 10,500 mAh
• Energy: 76 Wh
• Best Uses: Designed for high-draw camera rigs, heavy-duty production monitors, and high-output LED fixtures requiring extended runtime.

On-set USB-C charging for Mathorn batteries

Mathorn NP-F battery packs come integrated with direct USB-C ports. This allows you to top them up using standard smartphone chargers, power banks on location, or 12V car adapters while on the move.

Traditionally, operating NP-F systems required lugging around dedicated, bulky plastic sled chargers. For a camera operator, that meant extra cable clutter, awkward transport, and being tethered to wall outlets just to keep gear running.

Mathorn MB-902 with SMART power features

The flagship Mathorn MB-902 model incorporates a SMART fast-charging module featuring bidirectional USB-C and USB-A ports. Offering full support for Power Delivery 3.0 and Quick Charge 4.0 protocols, the MB-902 doesn’t just run your cinema gear—it doubles as a high-speed, high-capacity power bank on set.

Key connectivity features include:

• Bidirectional USB-C Port: Supports Power Delivery (PD) 3.0, AFC, Huawei FCP/SCP, and Quick Charge 4.0 protocols. This allows for ultra-fast self-charging as well as high-efficiency power delivery to external devices.

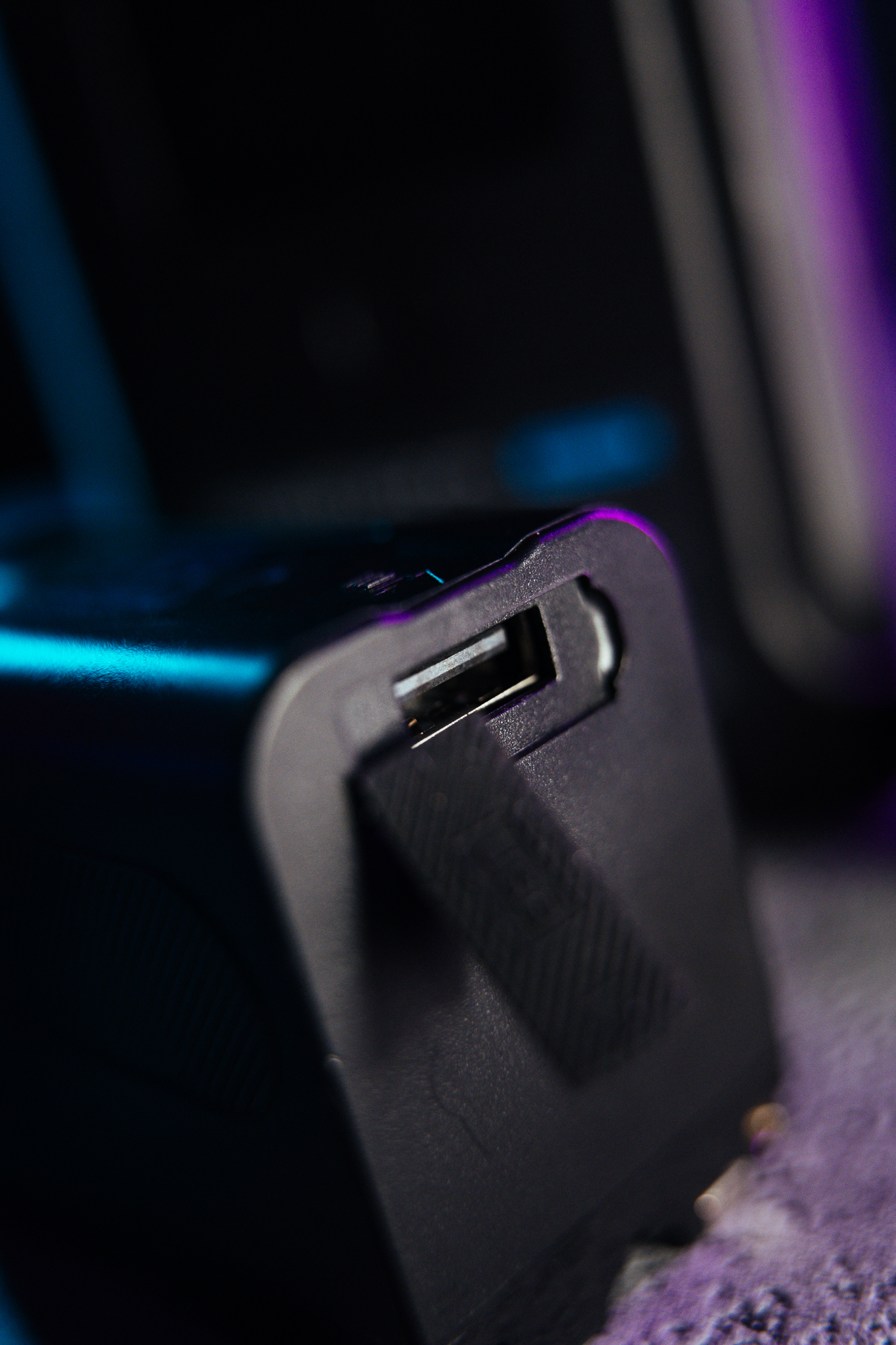

• Multi-Protocol USB-A Port: Enhanced with full support for Huawei FCP/SCP and Quick Charge 3.0 standards.
• Fast Charging Capabilities: The bidirectional USB-C PD 3.0 port supports charging input up to 30W. In real-world conditions, the battery reaches an 80% charge in just 45 to 55 minutes, hitting a full 100% charge in 75 to 90 minutes (depending on ambient temperature). That represents up to an 80% reduction in charge time compared to traditional 5V / 2.4A charging modes.

Model comparison & summary

Investing in a modern, intelligent power infrastructure is the single best way to ensure seamless production days without unexpected power failures. By ditching outdated, proprietary battery sleds in favor of onboard USB-C charging and Mathorn’s advanced BMS protection, you gain maximum mobility, thermal safety, and operational reliability on set.
